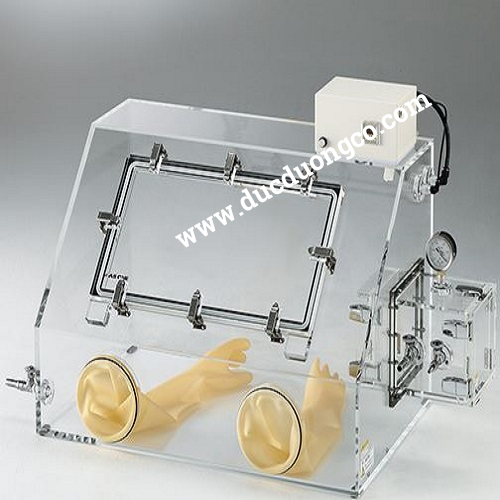

Airtight Glove BOX (With Chamber Pressure Control) Air tight 1000+PCRM-01

Name: Airtight Glove BOX (With Chamber Pressure Control) Air tight 1000+PCRM-01 - DUC DUONG
SKU: Airtigh 1000 + PCRM-01-en
Availability: InStock

Model: Airtigh 1000 + PCRM-01-en

Selling price: Contact

Product status: In stock

Model: Airtigh 1000 + PCRM-01-en

Company: AS-ONE - Japan

Model number: Air tight 1000+PCRM-01

Size (mm): 1290 x 535 x 500
Minimum operation differential pressure/Minimum display units pressure: 0.05kPa/0.01kPa
Material: Body/Transparent PMMA (acrylic resin), Valve, Vacuum gauge mounting portion/PC (polycarbonate), Hinge Base/PMMA (acrylic)
External connection: Air supply port (negative pressure side)/Outer diameter φ8mm tube (one touch method), Gas (air also available) supply port (positive pressure side)/Outer diameter φ8mm tube (one touch method), Exhaust port/Outer diameter φ10mm tube (one touch method)
Supplied air pressure: 0.4 - 0.6MPa (consumption: 80L/min(ANR))
Supply gas pressure: 0.6MPa or less
Power supply: AC100V 50/60Hz
Weight: 53kg
Accessories: Valve x 1 piece (outer diameter φ14mm), Large Gloves for Glove box x 1 pair
