Workbenches are designed and manufactured to offer quality, value, and durability to provide superior performance for today’s lab environments.
Work Surfaces and shelves can be specified in materials such as Phenolic, Epoxy Resin, Stainless Steel, Painted Steel, or Composite Resinwood Surfaces.
Cabinets and Support Legs, used to form the foundation for every workbench, are available in Painted Steel or Stainless Steel.
Workbench Components such as Panel Legs, height-adjustable Bench Frames, can be used to customize your work station.
Storage Cabinets are used to further maximize lab space and can be specified in Stainless Steel or MFC.

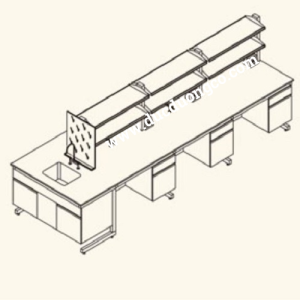

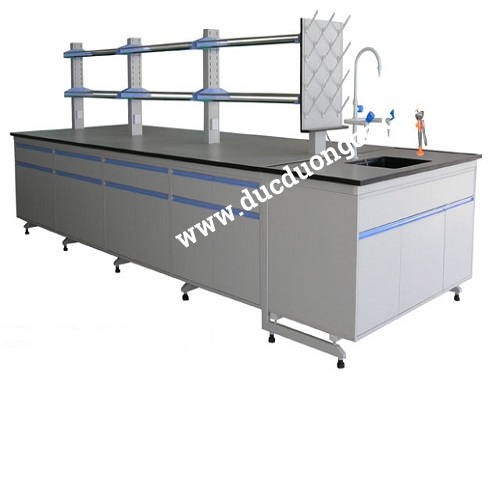

CENTRAL BENCHES (HỘC KÍN VÀ CÓ HỘC TỦ)
Manufacture: Duc Duong
– Dimensions: 4200x1500x800mm (the size can be changed by custommer’s demand)
– Support legs: 30×60 mm, thickness1.5mm are painted electrostatic.
– Central benches are desinged in the module, easy to movement and assemble.
1. Work surface materia (The materia can be changed by custommer’s demand)
– Work surface materia phenolic resin chemsurf (grey or black) thickness 18mm with some features:
– Phenilic resin thickness 18mm, are used widely in the world follow GMP, ASTM…
+ resin NaOH 40%
+ resin HCl 37%
+ resin HF 40%
+ resin HNO3 65%
+ resin Formandehyde 37%
+ resin Phenol 90%
+ resin H3PO4 85%
+ resin CCl4
+ resin NH4OH 25%
+ resin H2O2 3%
+ Affected by H2SO4 98%
2. Lab sink WJH0357E (The lab sink can be changed by custommer’s demand)
– Outside size (WxDxH): 550x450x310 mm
– Materia: High grade PP, resistant to most chemicals.
– Color: black, white, grey.
– Accessories: High grade PP drainer, PP basket trap and PP drainer cover.
3. Adjustable Pegboard SH 362A
– Dimension: 400×550×120(mm)
– Pegs: 27 pegs.
– Materia: High grade PP, resistant to most chemicals.
– Peg holes are sealed at the rear to prevent water leakage penetrating the wall behind.
– Intallation: wall mounter, put in the work benches
4. Lab water tap
– Material: brass.
– Cartridge: Ceramic
– Coating: gloss epoxy powder
– Water inlet : max 5.5bar
Electricity
+ Work benches are available with electrical wiring.
+ Includes 6 double-sided 3-pin plugs
+ 06 illuminated fluorescent lights
Shelf (The shelf can be changed by custommer’s demand)
– The work bench are attached to two floors shelfs of electrostatic powder coated steel, 5mm glass sheet.
Cabinets (The cabinets can be changed by custommer’s demand)
– MFC with moisture resistance 18mm, PVC running along the color of the board. The cabinet is designed with damper hinges, making the door do not collapse when closed, open
– One drawer and one cabinet
