Lò nung dùng trong phòng thí nghiệm 3 lít (chương trình)

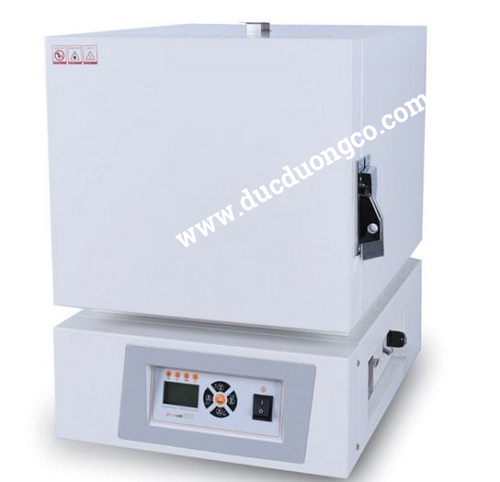

Muffle Furnace LF-MS230 program type

Name: Muffle Furnace LF-MS230 program type - DUC DUONG
SKU: LF-MS230P-en
Availability: InStock

Model: LF-MS230P-en

Selling price: Contact

Product status: In stock

Model: LF-MS230P-en

Suitable for Researching with Drying, Plasticity, Batch Measuring, New Material and Ceramic Sintering
• Preventing Damages of the Heater from Contact of Vapor and Corrosive Gas by Installing Fire Proof Molded Heating Element
• Available to Rapid Temp. Increasing and Uniform Temp. Distribution by 3 Side Heating Walls inside Design
• Auto Tuning, Temperature Calibration, Self-diagnosis Function Available
• Installed Duct Hole for Exhaust Gas and Vapor inside
• Installed Safety Device for Circuit Protection from Over Current and Over Heat
• Installed Port for RS485 PC Communication.
• Automatical Fault Sensing System (By itself can detect an unusual situation.)
• Double Overheat Safety Device – 1st Controller Overheat Alarm, 2nd Overheat Shut Off Circuit
• Digital Over Temperature Safety Device
• 2 type Timer Function Installed
• Program Type (2 Pattern, 18 Segment)
– Program Set-up, Repetition and Operating Reservation.
– Saving Interlock with Increasing, Maintaining of Temperature and Operating Time, and Saved Program Operate Continuously
• LK Labkorea

Model		LF-MS230P	LF-MS350P	LF-MS513P	LF-MS550P	LF-MS627P
Capacity		3 L	4.5 L	12 L	14 L	27 L
Controller	Control	Program Control
	Display	GLCD (Graphic LCD)
	Program	2 Pattern 18 Segment
	Resolution	1℃
Temperature	Range	Max. 1100℃ (Continuous Using Temperature 1000℃)
Temperature	Accuracy	±2%
Size(mm)	Internal	w130×d250×h90	w150×d300×h100	w220×d300×h200	w250×d350×h160	w300×d300×h300
	External	w380×d470×h575	w390×d520×h585	w450×d520×h690	w500×d570×h630	w550×d540×h785
	Duct	Ø12
Material	Internal	Ceramic Fiber Board
Material	External	Powder Coated Steel
Electric Supply	Power	1 Phase, 220VAC, 50/60 Hz
	Max Consumption	1.8 kW (8.1 A)	2.8 kW (12.8 A)	4.5 kW (21 A)	5 kW (22.8 A)	6 kW (27.2 A)
	Power Line	Standard Plug		Industrial Plug
Safety		Over Temp. & Current Protection, Automatical Fault Sensing System
