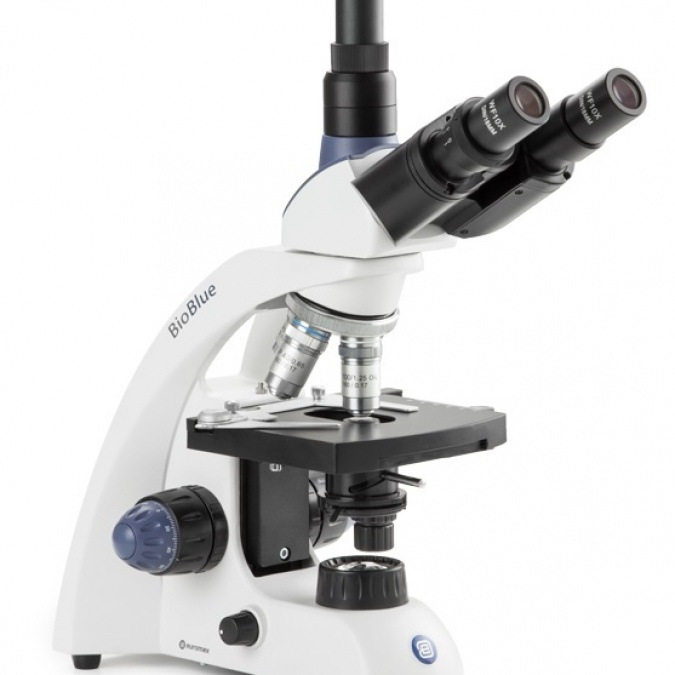

The BioBlue.Lab series of microscopes are designed to meet high demands in educational and laboratory applications. This model is equipped with vibration damping optical components and is ideal for cell biology and histology applications.

Technical Specifications:

Maximum Magnification: 1000x with 10x eyepiece and 100x objective lens.
Eyepiece: WideField WF 10x, 20 mm field of view.
Observation Head: 3-eye Siedentopf type, inclined at 30°, 30 mm diameter. Adjustable interpupillary distance from 48 to 75 mm. Head can rotate 360° with locking screw. Fixed 50:50 light split ratio.
Diopter Adjustment: ± 5° on the left eyepiece.
Nosepiece: 360° rotating, 4-position nosepiece. Equipped with PLAN OBJECTIVES with optical vibration damping (IOS):
- 4x/0.10
- 10x/0.25
- S40x/0.65
- S100x/1.25 (oil immersion)
Objectives: S40x and S100x equipped with spring-loaded mechanisms. All lenses treated to prevent mold and coated to maximize light transmission.
Focusing System: Coaxial coarse and fine focusing with 200 steps. Precision of 1.5 μm per step, 0.3 mm per rotation. Total travel approximately 28 mm. Includes limit stops to prevent damage to objectives and samples. Coarse focus equipped with friction control.
Stage Size: 150 mm x 140 mm. X-Y movement 75 x 30 mm.
Condenser: Abbe NA 1.25 condenser with adjustable height and iris diaphragm. Includes filter holder and white light filter.
Illumination: NeoLED™ 3 Watt with adjustable brightness control, power supply 100-240V (CE).
Accessories Included:
- Main unit (1 piece)
- Nosepiece (1 piece)
- Stage (1 piece)
- NeoLED™ 3 Watt light source (1 piece)
- Eyepieces: 2 pieces
- Objectives: 4x, 10x, S40x, S100x (1 piece each)
- Immersion oil: 5 ml
- Abbe condenser NA 1.25 and white light filter
- Power supply unit
- Dust cover and polystyrene foam packaging
- Spare fuse
- User manual
