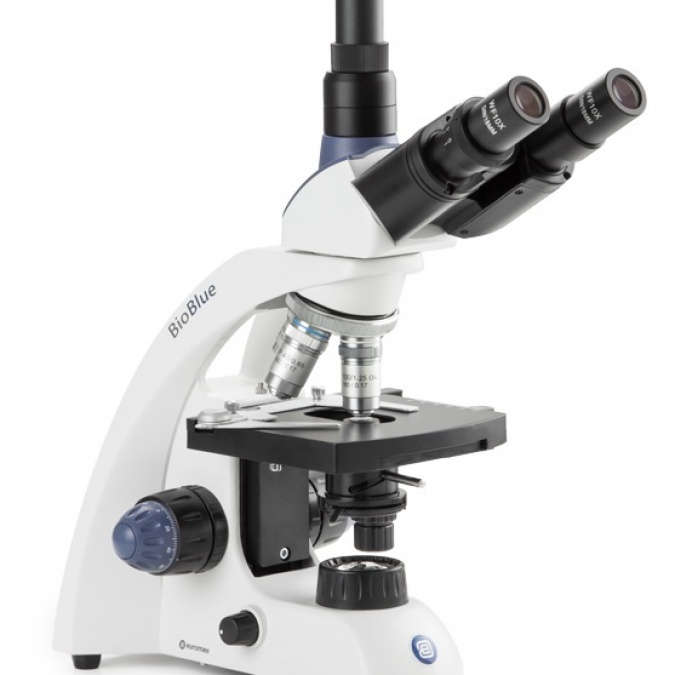

The BB.1153-PLi from Euromex is a high-performance microscope designed for educational and laboratory applications, featuring optical stabilization and a range of advanced specifications.
Technical Specifications:
Magnification:
Maximum magnification: 1000x with 10x eyepiece and S100x objective.
Eyepiece:
WideField WF 10x/20mm eyepiece with 20 mm field of view.
Trinocular head (3 eyepieces), inclined at 30°, rotating 360°.
Adjustable interpupillary distance: 48 to 75 mm.
Diopter adjustment: ±5° on the left eyepiece.
Optics:
Optical stabilization with PLAN objectives: 4x, 10x, S40x, S100x (S40x and S100x with spring-loaded design).
All optics treated to prevent mold and anti-reflective coating for maximum light transmission.
Objective Revolving Nosepiece:
360° rotating with 4 positions for objectives.
Stage:
Mechanical stage dimensions: 150 x 140 mm.
XY movement: 75 x 30 mm.
Condenser:
Abbe condenser NA 1.25 with adjustable height and iris diaphragm. Includes a filter holder and white filter.
Focusing System:
Coaxial coarse and fine focusing with 200 steps. Accuracy: 1.5 μm per step, 0.3 mm per rotation. Total travel: approximately 28 mm.
Includes limit stop to prevent damage to the sample or objectives.
Coarse focus control with friction adjustment.
Illumination:
NeoLED™ 3 Watt light source with adjustable brightness.
Power supply: 100-240V (CE certified).
Additional Features:
Fixed 50:50 light split.
5 ml immersion oil included for S100x objective.
Includes charging adapter, dust cover, spare fuse, white light filter, and user manual.
