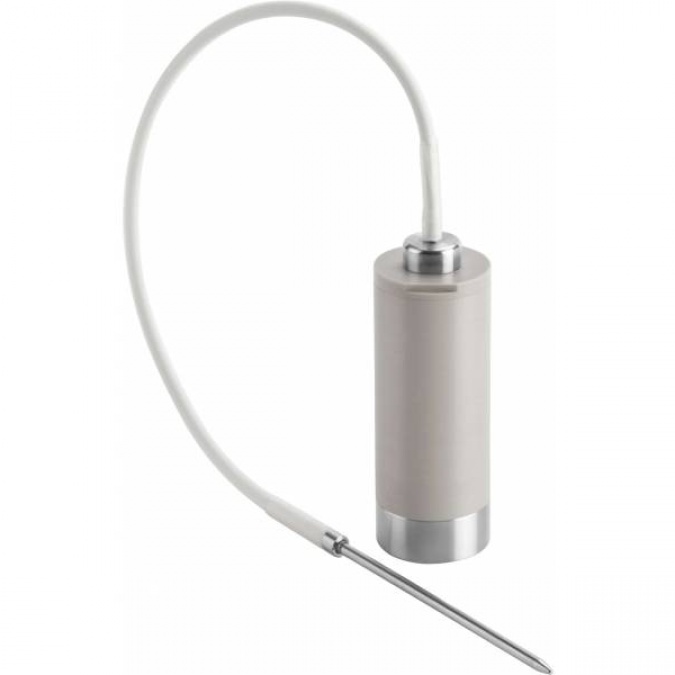

Wireless Temperature Data Logger with 50 mm Probe - S-RADIO 50
Manufacturer: Tecnosoft – Italy
Model: S-RADIO 50
Code: TS01SR7
1. Product Information
The S-Radio is a wireless temperature data logger capable of measuring temperatures from -40°C to 140°C.
Along with recording data, the device can transmit temperature readings via radio waves for real-time monitoring and temperature graphing.
The device can be configured and data transmitted to a computer using either the DiskInterface HS or Universal Multibay. Real-time data is transmitted via a USB Radio Receiver and displayed on the SPD software.
The device comes with a calibration certificate at the following temperature points: 25/50/75/100/121/140°C. An extended calibration range from -40°C to 140°C is available upon request.
Specifications:
Dimensions: Logger body: H76 x Ø30 mm
Material: Stainless steel AISI 316L and PEEK plastic (food-safe)
Probe Dimensions:
Probe Base: Height 13 mm x Ø15 mm
Probe: Length 50 mm x Ø3 mm
Temperature Range: -40°C to 140°C
Resolution: 0.01°C
Accuracy: ±0.1°C (within the calibration range)
Standard Calibration Points: 25/50/75/100/121/140°C
Memory: 121,171 data points
Recording Interval: From 1 second and in multiples of 1 second
Power Source: Replaceable battery (supports approximately 3,800,000 recordings with a 1-second interval at 25°C; battery life may decrease at lower temperatures)
Protection Rating: IP68
Compatible with: DiskInterface HS, Universal Multibay, USB Radio Receiver
Software: SPD (free), TS Manager
Certification: Calibration certificate provided
Optional Accessory:
Real-time Data Receiver: USB Radio Receiver, Code: TS04RR
